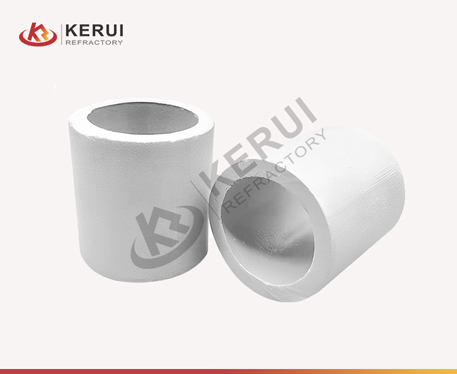

Ceramic Fiber Tube
- Service Temperature: ≥1000℃;
- Inner Diameter: 18-539mm;
- Refractoriness Under Load: 1250-1400ºC;
- Wall Thickness: 30-150mm;
- Length: 1000mm;
- Sample: testing of sample is available
Description of Ceramic Fiber Tube
Ceramic fiber tube is a high temperature resistant insulation material made of ceramic fiber, which has excellent heat resistance, thermal insulation and chemical stability. It is often used in the fields of high temperature pipeline insulation, heat treatment equipment, electric heating element protection, etc. Ceramic fiber tube is light in weight, low in thermal conductivity, does not contain asbestos, is easy to construct, and is an ideal energy-saving refractory material.
Kerui Ceramic Fiber Tube Technical Data Sheet
| Item/Grade | STD Blanket | HP Blanket | HA Blanket | HZ Blanket | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Classification Temperature/℃ | 1260 | 1260 | 1350 | 1430 | ||||||
| Chemical Composition | ω (Al2O3) ≥/% | 43 | 44 | 52 | 35 | |||||
| ω (SiO2) ≥/% | 54 | 55 | 47 | 49 | ||||||
| ω (ZrO2) ≥/% | / | / | / | 15 | ||||||
| Color | White | White | White | White | ||||||
| Shot Content ≤/% | 15 | 15 | 15 | 12 | ||||||
| Bulk Density (kg/m³) | 64 | 96 | 128 | 96 | 128 | 96 | 128 | 96 | 128 | |
| Tensile Strength/kPa | 30 | 50 | 70 | 50 | 70 | 50 | 70 | 50 | 70 | |
| Permanent Linear Change ≤/% | 1000℃*24h 2.5 | 1100℃*24h 2.5 | 1200℃*24h 3.0 | 1350℃*24h 3.0 | ||||||
| Thermal Conductivity Coefficient /[W/(m·K)] | 200℃ | 0.07 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 |
| 400℃ | 0.12 | 0.11 | 0.1 | 0.11 | 0.1 | 0.11 | 0.1 | 0.11 | 0.1 | |
| 600℃ | 0.2 | 0.19 | 0.18 | 0.19 | 0.17 | 0.18 | 0.16 | 0.16 | 0.15 | |
| 800℃ | 0.3 | 0.23 | 0.2 | 0.23 | 0.2 | 0.22 | 0.2 | 0.21 | 0.19 | |
| 1000℃ | 0.4 | 0.32 | 0.27 | 0.31 | 0.26 | 0.3 | 0.26 | 0.3 | 0.26 | |
Advantages of Ceramic Fiber Tube
Certificates of Kerui Refractory
Kerui Group has a number of international certifications, such as,ISO9001/ISO14001/OHSAS18001/CE/SGS. Besides, Kerui Refractory also has a number of domestic certifications.
KERUI REFRACTORY PRDUCTS PACKAGING&SHIPPING
Besides mainland China, Kerui Refractory has exported products to more than 50 countries and regions across 5 continents across the world, including Asia, Europe, America, Africa and Oceania. We have received recognition and high praise from customers all over the world, and are constantly receiving customers’ return orders and referrals.
Laboratory of Kerui Refractory
Kerui has a professional quality inspection laboratory. High temperature reheating/load softening creep test furnace;Compressive/flexural strength testing bench for refractory materials; Composition testing and inspection platform for refractory materials; Laboratory for physical/chemical properties for refractory materials.
Application of Ceramic Fiber Tube
Ceramic fiber tubes are widely used in high-temperature pipe insulation in metallurgy, power, chemical industry, shipbuilding and other industries. They can effectively reduce heat loss and improve energy utilization. They are also used for sealing and insulation of heating element protection sleeves, high-temperature gas transmission pipes, heat treatment equipment and industrial furnaces. They have good thermal insulation, fireproof and corrosion resistance, and are ideal insulation materials in high-temperature environments.
