Refractory Anchors
Refractory anchors are used to connect the inner parts with the furnace body and shell of high-temperature equipment. They can prevent the refractory materials shirk or cracking in high-temperature situations. And they can be used in a wide temperature range from 500℃ to 1400℃.
- Shapes: Y-anchor, V-anchor, U-anchor, S-anchor, T-anchor, wavy anchors;
- Materials: SUS201, SUS 304, SUS 310S, ceramic, etc;
- Service Temperature: 500℃ to 1400℃;
- Delivery: 7-30 Working Days;
- Sertifikasi: ISO9001/ISO14001/ISO45001/ISO50001;
- Price: 100% Low Ex-factory Price;
Different Shapes of Refractory Anchors
There are different shapes of stainless steel refractory anchors, including Y type anchors, refractory V anchors U-anchor, S-anchor, T-anchor, wavy refractory anchors, and so on. They can be used in different situations in high-temperature kilns.

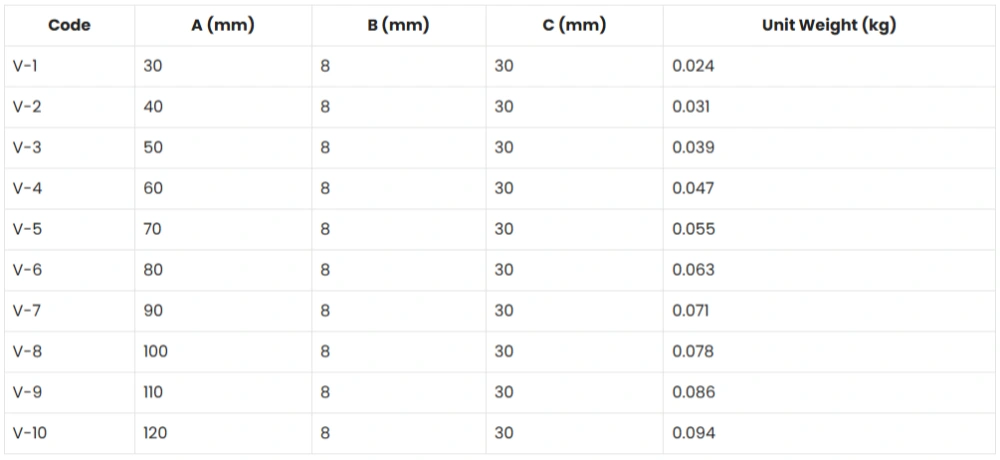

Common Sizes of V Refractory Anchoring Parts

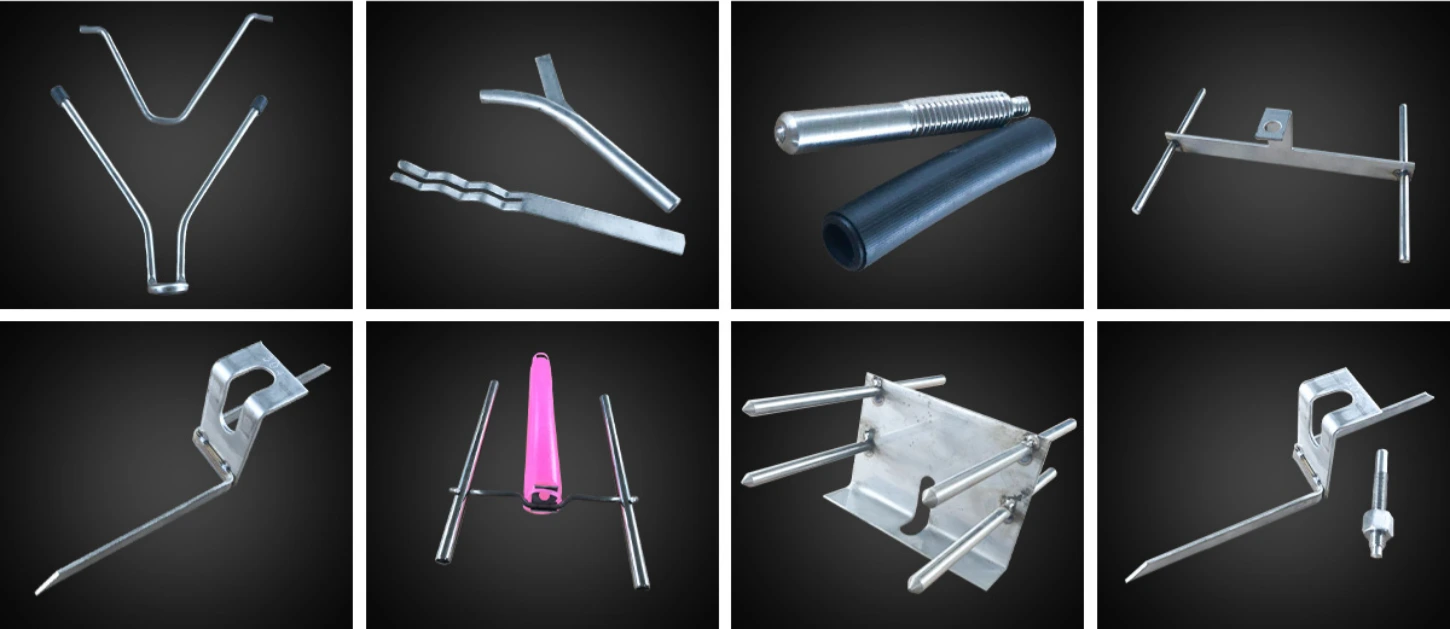

Types of Kerui Refractory Anchors
Kerui Refractory provides several types of anchors. They are made by different refractory products, including low carbon steel, silicon steel, ferrochrome, ferrochrome, type 320 stainless steel, ceramic, etc.
NO.1 Metal anchors can withstand 900-1200℃.
- low carbon steel: 450℃;
- Q235, SUS201 ≤550℃;
- SUS 304: 550℃-1000℃;
- SUS 310S: 1000℃-1250℃;
NO.2 Heat-resistant steel and ceramic composite can withstand 1250℃-1400℃.
NO.3 Ceramic anchors (clay, high alumina, corundum) can withstand 1650-1800℃.

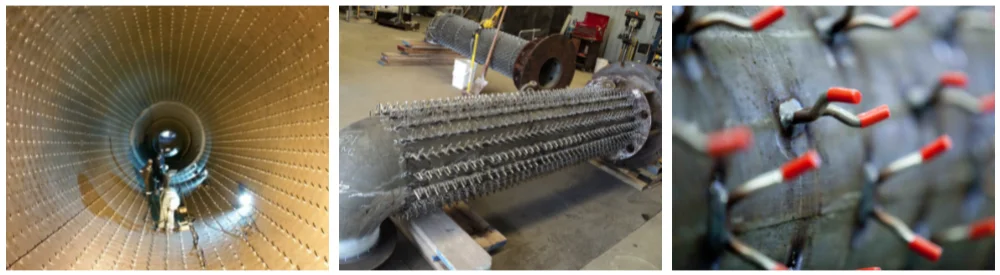

Application of Refractory Anchors
Refractory anchors are mainly used in integral linings, but they are also used in refractory brick linings. Using different anchors can help to resist mechanical shock, like Y anchor refractory, and V anchor refractory. Stainless steel anchors usually support or strengthen the thin linings, including the linings of chimneys, spray guns, DH and RH vacuum degassing devices, the outlet of rotary kilns, and so on.
Ceramic anchor products are used in more than 1200℃ in a long working time. They also can resist chemical erosion. Compared with metal anchors, ceramic fiber anchors’ contact area with refractory materials is large. So they can be used in thick linings. Anchor Y is a hot product.
